Bolts

Lightning-fast and optimized

DUE TO ITS WELL-ENGINEERED MECHANISM

IT CAN BE CLAMPED AND RELEASED BY HAND WITHIN SECONDS.

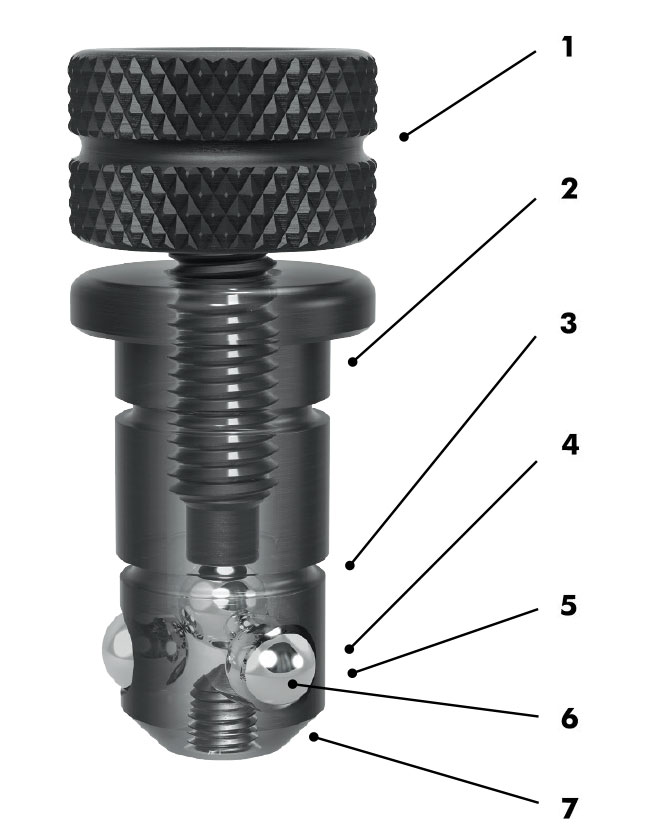

bolt application
  1. Optimized grip ergonomics:
    sufficient space between grip and work piece enables easier handling
  2. Bolt body
    manufactured of hardened, high-alloyed steel for maximum strength
  3. No O-ring is required due to minimized internal friction
  4. Ø 6.7 mm balls, large pressure surface, center of pressure maximally relocated outwards
  5. Optimized load distribution support based on only 3 balls according to the trihedral principle. No O-ring required to keep balls in place!
  6. Chamfer enables clamping crosswise
  7. Patented mechanism prevents jamming of balls

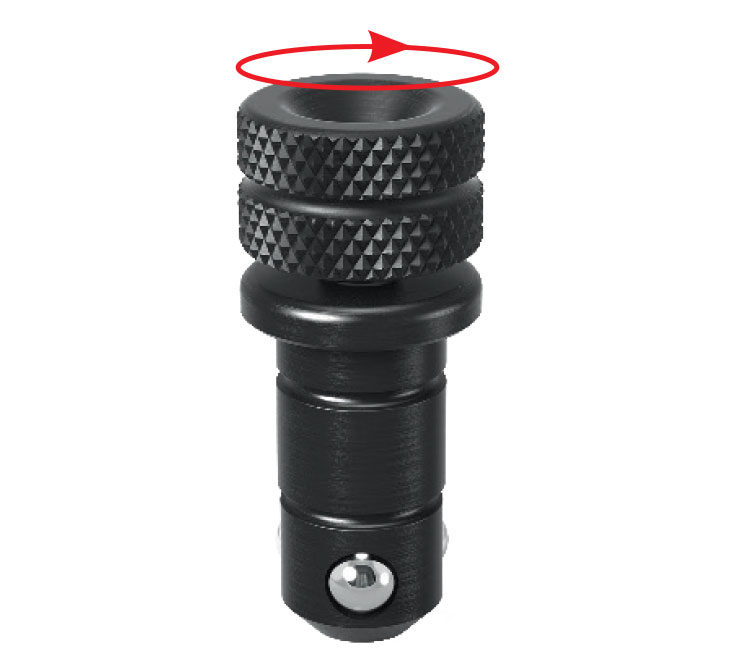

TIGHTENING TORQUE (AM)

The tightening torque is the force required to fasten the bolt using a torque wrench. In order to achieve maximum clamping force, the tightening torque should not exceed the recommended guideline.

The bolt was designed to only require a low torque to reach maximum clamping force, thereby enabling simple manual clamping.

Max. AM of 160510: ≤ 10 Nm

bolt
bolt

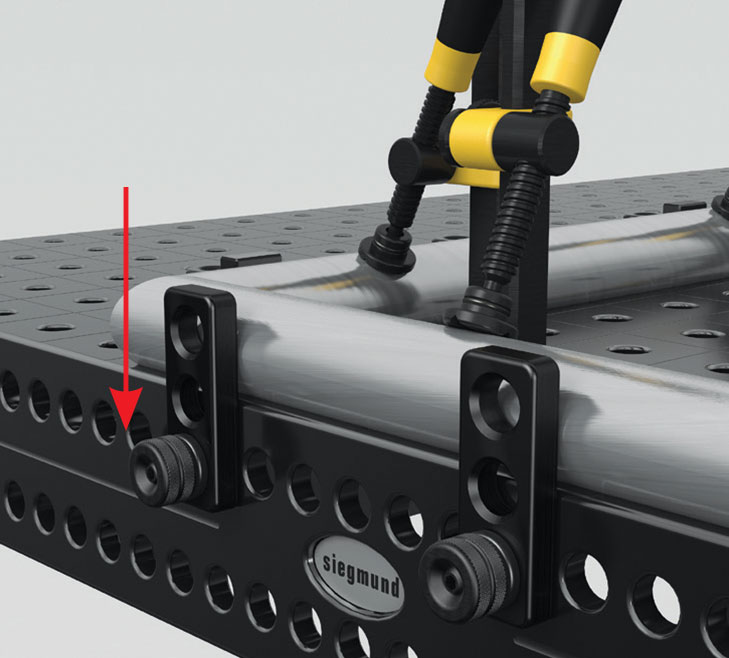

SHEARING FORCE (SK)

The shearing force is the force which reacts laterally to the cross-sectional area of the bolt.

Max. SK of 160510: ≤ 55 kN

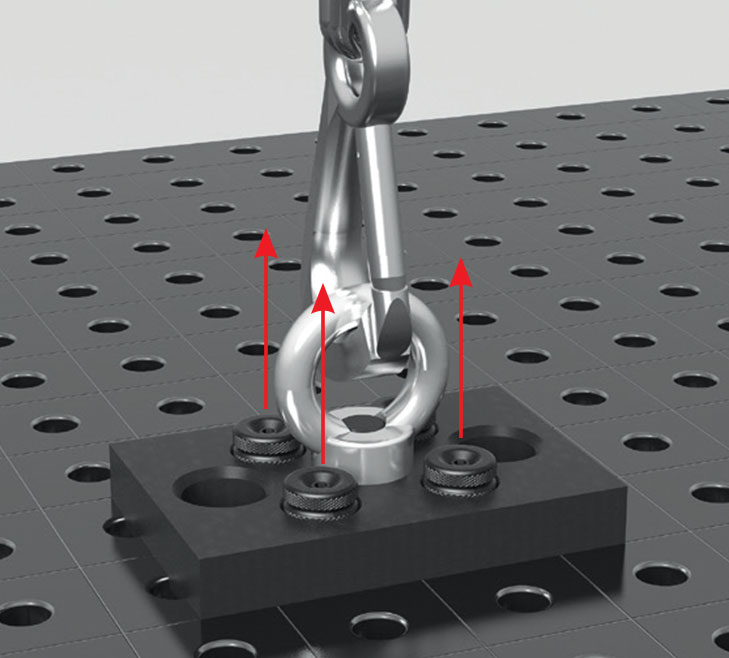

TENSILE FORCE (ZK)

The tensile force is the force created when pulling on fixed bolts.

Max. ZK of 160510: ≤ 10 kN

bolt

All bolts come in short and long versions. Short bolts are designed for connecting two Siegmund components together such as a table to a stop or a stop to a square. Long bolts are designed for connecting three Siegmund components together. Connecting Bolts are used to join heavy parts such as riser blocks to tables.

160510

S2-160510

160512

S2-160512

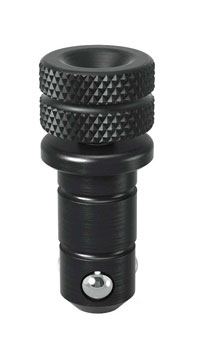

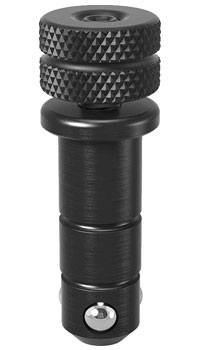

Fast clamping Bolts - Standard bolts used for the majority of applications.

160522

S2-160522

160523

S2-160523

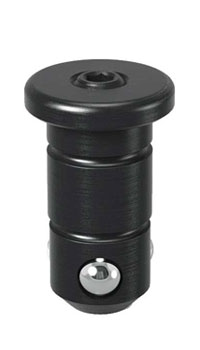

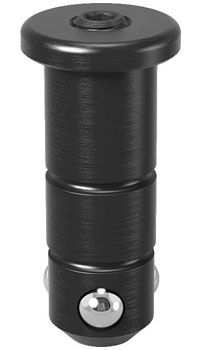

Low Profile Bolts - Low profile bolt for use in slotted applications where a flush mount is not appropriate.

160528

S2-160528

160529

S2-160529

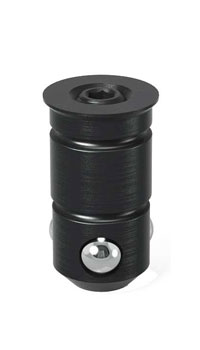

Flush Mount / Flat Bolts - Used to connect components without the bolt head interfering with the work piece.

160532

S2-160532

160561

S2-160533

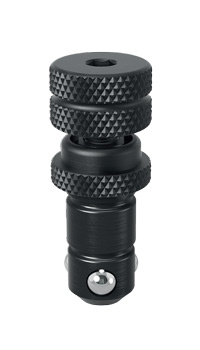

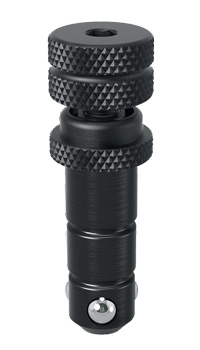

Universal Clamping Bolt - Use the Universal Clamping Bolts to connect accessories of varying material thicknesses.

NOT to be used for joining tables and U-shaped squares.

160560

S2-160560

160561

S2-160561

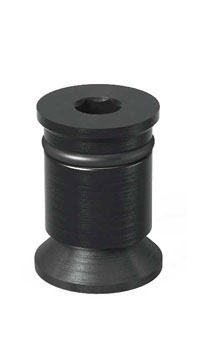

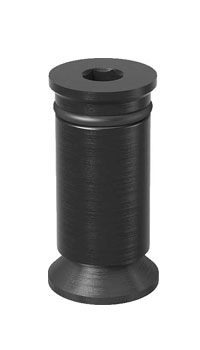

* Connecting Bolts - The only bolt permitted for use to form connections with heavy parts such as Riser Blocks to tables.

160540

S2-160540

Quick positioning bolt for applications where clamping force is not required.

Item Number Name Length (mm) Dia. (mm) Weight (kg) Notes Shearing Force (kN) Tightening Torque (Nm) Tensile Force (kN)
S2-160510 Fast Clamping Bolt, Short - 16 0.08 For clamping 2 components with screw top 55 10 10
S2-160512 Fast Clamping Bolt, Long - 16 0.10 For clamping 3 components with screw top 55 10 10
S2-160522 Fast Clamping Bolt, Flat Short 36 16 0.05 For clamping 2 components 55 10 10
S2-160523 Fast Clamping Bolt, Flat Long 48 16 0.08 For clamping 3 components
 55 10 10
S2-160528 Flush Mount Bolt, Short 31 16 0.04 For clamping 2 components 55 10 3
S2-160529 Flush Mount Bolt, Long 43 16 0.05 For clamping 3 components 55 10 3
S2-160532 Universal Bolt, short - 16 0.11 For clamping 2 components
22 - 28 mm clamping range		 50 10 10
S2-160533 Universal Bolt, long - 16 0.12 For clamping 3 components
34 - 40 mm clamping range		 50 10 10
*S2-160560 Connecting Bolt, Short - 16 0.03 For connecting 2 components
- with Allen key		 50 15 4
*S2-160561 Connecting Bolt, Long - 16 0.05 For connecting 3 components
- with Allen key		 50 15 4
S2-160540 Positioning Bolt - 16 0.07 - - - -
